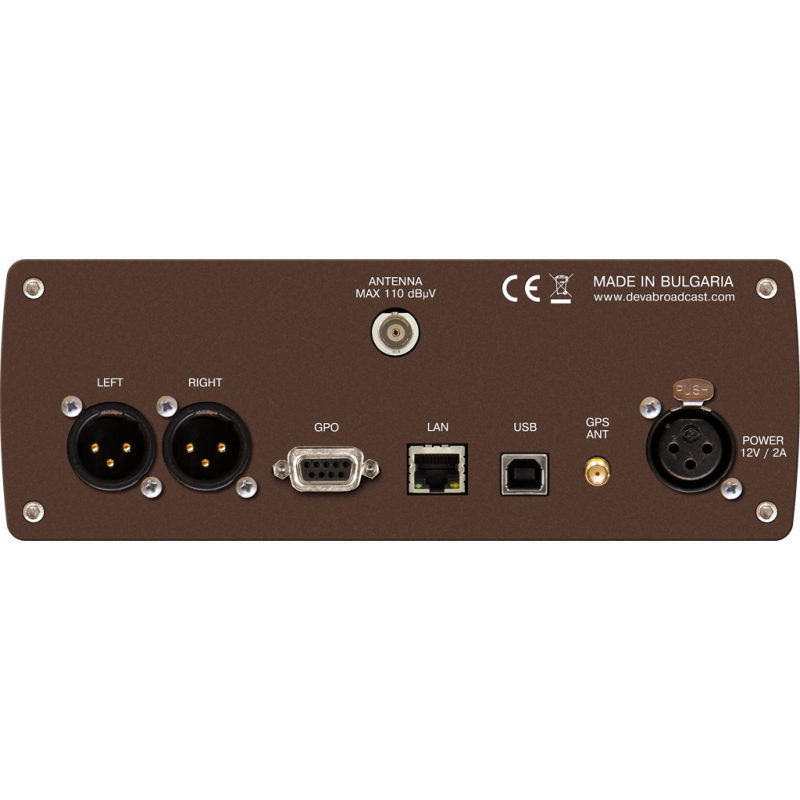

Deva Radio Explorer III HD Radio

\n

• \n
• FM/HD Radio DSP-based Tuner 87.1 - 107.9MHz \n
• Up to 100 dBµV direct RF Antenna Input \n
• Selectable wide range IF filter bandwidth \n
• HD Radio PAD (Program-Associated Data) Information \n
• Provision for PAD data analysis and Logging \n
• Selectable De-emphasis - 50µs and 75µs \n
• RDS and RBDS decoder with BER meter \n
• Very Intuitive Navigational Menu \n
• Protected access to the device settings \n
• SNTP for automatic synchronization of the built-in clock \n
• LAN port for full TCP/IP remote control and monitoring \n
• Adjustable MIN/MAX alarms for RF, Left & Right Audio Levels \n
• Alarm dispatch via E-mail, SNMP ver.2C and GPO \n
• Firmware updates will ensure improved operation \n

\n

• \n
• Antenna port supporting up to 110 dBµV direct RF Antenna Input \n
• Built-in 50-channels GPS Receiver \n
• Front panel OLED Graphical Display \n
• Easy to use WEB Interface \n
• Apple and Android devices support \n
• Very Intuitive Application Interface \n
• SNMP for adjustments and control \n
• Maintenance via DEVA Device Manager Software \n
• Measurement results visualization in Google Earth \n
• Accurate front-panel metering for local use \n
• Headphone output with front panel level control \n
• 3 General purpose outputs \n
• Built-in FTP Server for easy download of the Log files \n
• Robust, custom made Metal Case for high RF immunity \n

\n

\n \nRadio Explorer III HD Radio is an impressive addition to DEVA Broadcast's line of products dedicated to HD Radio monitoring. Fully compliant with the Digital HD Radio Broadcasting standard, this is a powerful tool, which comes with an FM tuner and an FM/HD Radio tuner for an even higher quality of operation. \n \nIt is the go-to product for reliable coverage survey and measures the selected HD Radio frequency with precision and effectiveness, including FM parameters, of up to 10 channels. The built-in FM RDS/RBDS Decoder and the HD Radio PAD Decoder further contribute to the top performance of the Radio Explorer III HD Radio. As is the case with all of our products, this one combines superb features with user-friendly operation. Its high-resolution graphical OLED display with front panel navigational buttons and soft buttons ensures effortless usage of the unit, with easy navigation through the menus and quick access to the device's various functions. \n \nThe Radio Explorer III HD Radio measures all important signal parameters, including the RF level, MPX deviation, Left & Right Audio levels values, as well as HD Radio parameters such as DAAI and CDNR. Additionally, it boasts a Loudness meter, which can be shown as defined by ITU BS.1770-4 and EBU R128 recommendations, as the product supports both. \n \nThis tool can also be controlled through the built-in Web server - a standard web browser can be used to monitor its status or to make some adjustments. iOS and Android devices are also supported. The Main Screen of the WEB Interface shows all mandatory parameters represented as LED bar graph readings. \n \nThe DEVA Device Manager Software, supplied free of charge, also allows for quick and easy connection to the device. \n \nWith its array of smart features, Radio Explorer III HD Radio is sure to be the product of choice for dependable HD Radio monitoring. \n \n
