Deva Radio Explorer Mobile FM Radio Analyzer

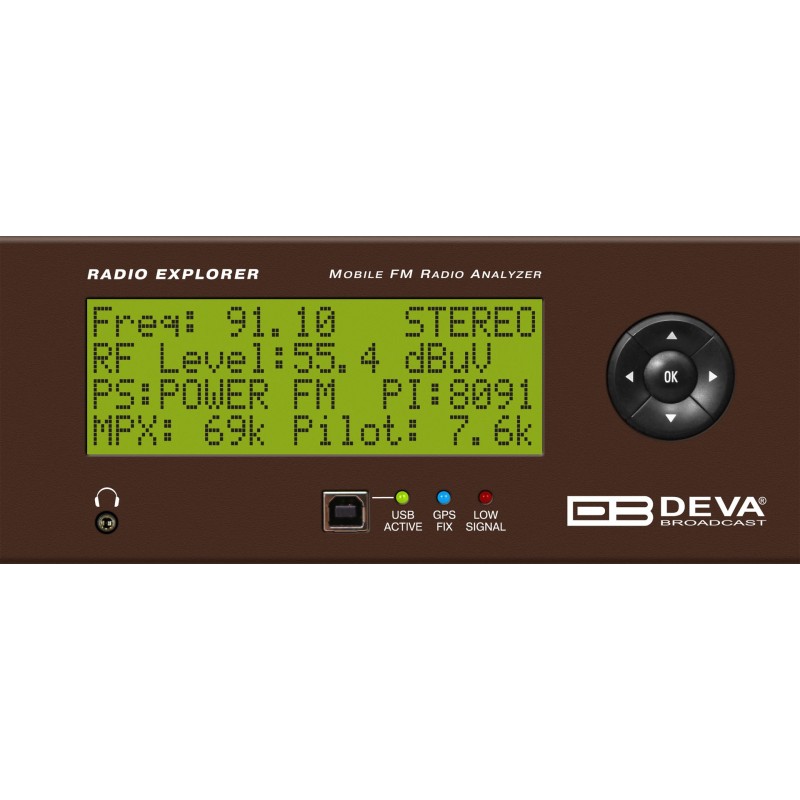

\n \nThe Radio Explorer is an excellent tool for onsite setup and analysis of broadcasting equipment. This unit can measure all the important parameters of the FM transmissions and displays them on the large LCD display. For even better control, the device can be connected to any Windows PC via a front panel USB port. \n \nThe Radio Explorer can be set to measure up to 50 preselected channels. When the data collection is over, the collected log files can be converted into .kmz format and displayed in Google Earth using the supplied free-of-charge Windows software. Thus, you can acquire a clear display of the station’s current condition. Such functionality is matchless when analysis and tune-up of the broadcast equipment and antennas is needed. The Log file can be exported as an intermediary format for future analysis. In addition, the band scan mode guarantees real-time display of the FM band or a fraction of it with down to 5 kHz resolution. \n \n

\n

• \n
• FM Band 87÷108 MHz Basic Spectrum Analyzer \n
• MPX, PILOT & RDS deviation meters \n
• Built-in Stereo decoder; Stereo Presence Detection \n
• LEFT and RIGHT demodulated audio level meters \n
• Measurement results visualisation in Google Earth \n

\n

• \n
• Accurate front-panel metering for local use \n
• Headphones audio output with volume control \n
• Full control and monitoring via USB connection \n
• RF and RDS Measurements (real time & average) \n
• Built-in 50-channels GPS Receiver \n

\n

• \n
• RDS and RBDS decoder \n
• FM/RDS/RBDS Data Logger \n
• RDS/RBDS Stream BER meter \n
• Metal Case for high RF immunity \n
• Very Intuitive Application Interface \n

\n

\n \nThe Radio Explorer is a multifunctional, easy to use tool, designed to evaluate FM broadcast band congestion and to measure and store all important radio broadcast parameters in a Log file. This is a stand-alone solution for running surveys - no other additional tools are needed. You can setup for observation up to 50 preselected channels. All you need to do is to get Radio Explorer in the vehicle and go. When your campaign is over just use the supplied free of charge Windows software to convert the log files into KMZ format and visualize the stored data in Google Earth. Thus you can "get the picture" of what really happens in the field, to outline the coverage of every station compared to competitors'. Such functionality is irreplaceable when you need to analyze and tune your broadcast equipment and antenna. The Log file can be exported also as a transitional format for future analysis or could be kept in record. \n \nWith a click on the button the Radio Explorer becomes an excellent tool for analyzing and setup of the whole broadcast equipment on the site. It can measure RF level, MPX deviation, Left & Right Audio levels, RDS and Pilot injection levels and display the measurements on large, easy to read LCD display. Easy switching between RDS/RBDS standards and measurement units makes Radio Explorer a suitable choice for broadcast engineers from all around the world. For even better control and data representation connect the device to an ordinary Windows PC, via a USB port. You can choose between various bar-graphs, data plots, histograms and etc. A super-fast band scan mode is available and gives you real-time live visualization of the whole FM band or just a small part of it with down to 5 kHz resolution. All of the device's or the campaign settings you can do by using software or via very intuitive and sample user interface with 5 buttons and LCD screen. \n \nThe Radio Explorer incorporates a high quality FM front end with all MPX signal and RDS parameters data logger and high sensitive GPS receiver in reinforced steel box. Additional MPX input is available for monitoring as well as MPX output, left and right "program output" and AES/EBU digital audio output. The inputs are for FM and GPS antennas and for power supply. The program received can be monitored with headphones plugged into a standard 1/8" jack with electronic volume control. \n \n

\n \n

RF Input
Tuning Range	87 to 108 MHz
Tuning Step	50kHz (5 kHz in Band Scan Mode)
Tuner Sensitivity	40 dBµV
Antenna Ports	BNC Connector, 50Ω
Antenna Ports Isolation	No
Internal Attenuator	No
Dynamic range	0 to 90dBµV; 20 dBµV (-87 dBm) for monaural; 43.5 dBµV (-63.5 dBm) for stereo
FM Demod
IF Filter Bandwindth	fixed 150 kHz
Frequency Response	±0.5 dB, 10 Hz to 40 kHz
MPX Power	No
Dynamic range	> 80 dB
Stereo Decoder
Frequency Response (L and R)	±0.5 dB, 20 Hz to 15 kHz; follows selected de-emphasis curve
De-emphasis	50 µs or 75 µs, Selectable
SNR (Stereo)	>50 dB, 50 µs de-emphasis
THD	<0.3%, 10 Hz to 15 kHz, 50 µs de-emphasis
Separation	> 35 dB
Crosstalk	> 40 dB
FFT Spectrum Analysis (RF, Composite, Audio)
Signal Sources	No
FFT length	No
Dynamic range	No
Scope Analysis (RF, Composite, Audio)
Signal Sources	No
Record length	No
Dynamic range	No
Metering Accuracy
RF Level	±3dB, 0 to 80dBµV
MPX Power	No
Total, Pos, Neg	±3 kHz, 0 to 130 kHz, 0.1 kHz resolution
Pilot, RDS	±0.5 kHz, 0 to 15kHz, 0.1 kHz resolution
Audio	±2 dB, +3.0 to -35.0 dB, 0.1 dB resolution
Outputs
Audio (L, R)	+15 dBm, 600Ω, XLR (on rear panel, adjustable)
AES3 (L, R)	5.0 Vp-p, 110Ω, balanced XLR Connector
GPO	No
Headphone	3,5mm (1/8") Phone Jack
Communication Interfaces
USB	B-type Connector
Ethernet 10/100 Base-T	No
RDS Decoder
Standards	European RDS CENELEC; United States RBDS NRSC
Error Correction & Counting	Yes
AF Decoding	Yes
CT (Time/Date)	Yes
PI, PTY, DI, MS	Yes
TA/TP	Yes
RT (Radio Text), RT+	Yes
PS (Program Service name)	Yes
TMC, ODA	Yes
Group Analyzer	Yes
BER Analyzer	Yes
Group Sequence Display	Yes
RDS RAW Data Display	Yes
GPS Receiver
Number of channels	50
Antenna	Pre-amplified, 5m of cable, magnetic
Connector	SMA, rear panel
Measurement Storage
Storage	2GB Build-in Memory Card
Data format	proprietary binary files
Power Requirement
Voltage	12 DC (11-15V) / 2A max at 12V
Connector	XLR (on rear panel)
Size and Weight
Dimensions (W;H;D)	216 x 89 x 190 mm
Shipping Weight	470 x 180 x 310 mm / 4.832 kg
HS Code	8527212000
