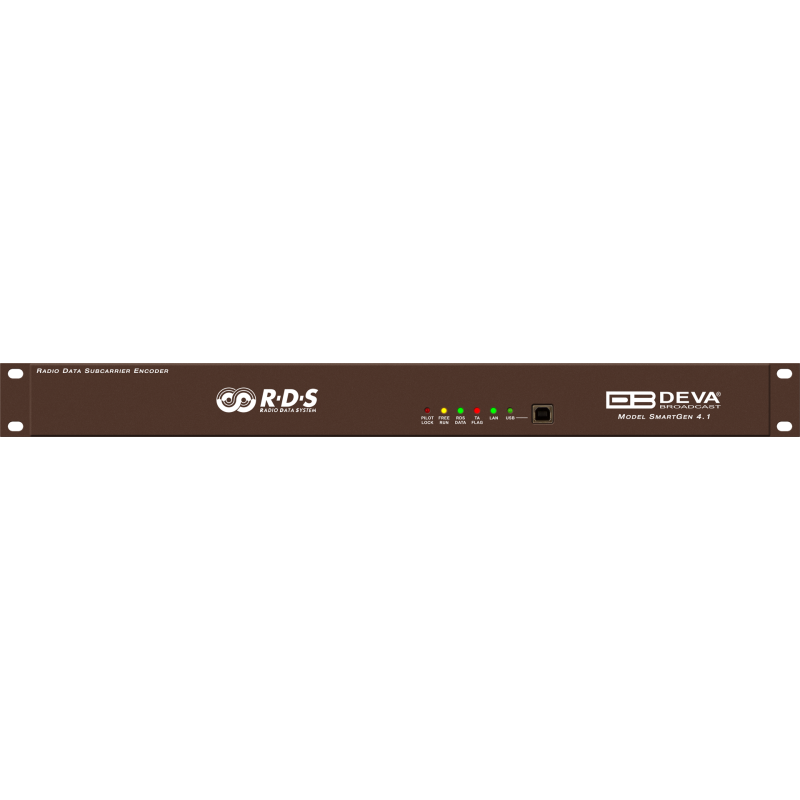

Deva SmartGen 4.1

• Supports European CENELEC and United States NRSC standards
• Attractive price and very good price-performance ratio
• Supports RT+ for songs and content tagging
• PS & Radio Text Scrolling Options
• Supports TMC (Traffic Message Channel)
• Compatible with EWS (Emergency Warning System)
• Embedded WEB server for interactive supervision
• Fully Digital Synthesis of RDS signal
• Fully compatible with UECP EBU SPB490 Version 7.05
• MPX Loopthrough & Sidechain Modes
• Internal or external Pilot / MPX synchronisation
• Very Intuitive UECP Configuration Software
• Remote RDS viewer to visualize broadcasted data

• Proved and reliable hardware for 24/7/365 operating
• Easy Installation and Setup
• LAN & USB Programming Interfaces
• Remote configuration via ASCII or UECP through LAN or USB
• Interfaces with all popular radio automation systems
• Built-in dedicated 19kHz source for internal sync
• Built-in failsafe bypass relay
• Includes the TA function for traffic message priority override
• Works with any FM exciter and stereo generator
• SNTP for automatic synchronization of the built-in clock
• Internal data diagnostics and transmission safeguards
• Real time clock Schedules for Scrolling Text and text lists
• 19" Professional Case for high RF immunity

The SmartGen 4.1 is a full-fledged RDS/RBDS encoder that supports both European CENELEC and United States NRSC standards. It supports all service IDs and offers simultaneous scrolling-PS and RadioText messaging. SmartGen 4.1 is fully compatible with the latest UECP EBU SPB490 Version 7.05. The interactive function RT+ for song tagging is fully supported without a compromise. Based on the latest RDS technology, the SmartGen 4.1 is fully digitally designed for 24/7/365 operation. The SmartGen 4.1 is the most cost-effective solution for sending of TMC and EWS Services.

SmartGen 4.1 gives dynamic, on-the-fly programming access with its built-in USB, TCP/IP, UDP/IP interfaces. This connectivity permits full integration of RDS/RBDS transmissions with the station’s other networked functions, including message streaming for digital radio and Webcasting. The SmartGen 4.1 encoder provides a full loopt-hrough interface for connection to your existing broadcast chain. The SmartGen 4.1 can 'parse' scrolling text, automatically breaking the phrases into word groups.

PROGRAMMING SOFTWARE:

Based on our more than 15 years of experience in the RDS field, the SmartGen RDS/RBDS Encoders Manager was developed as a dedicated software for full management of our high-end RDS Encoders range as regards to the latest updates of the UECP EBU SPB490 Version 7.05

It supports a wide range of interfaces as RS-232, USB and LAN. The SmartGen Manager has “Basic RDS” and “Advanced RDS” programming interfaces. Using its “Basic” Mode, all main RDS parameters can be easily programmed into the non-volatile memory of the RDS Encoder. The interactive simulator shows the outgoing scrolling messages exactly as they are displayed to the listeners.

The SmartGen RDS/RBDS Encoders Manager has all the functionalities required to drive any parameter by the latest version of the UECP EBU SPB490 Version 7.05. Its visual and self-guided user interface makes the UECP advanced programming of the SmartGen Encoders easy and user-friendly.
