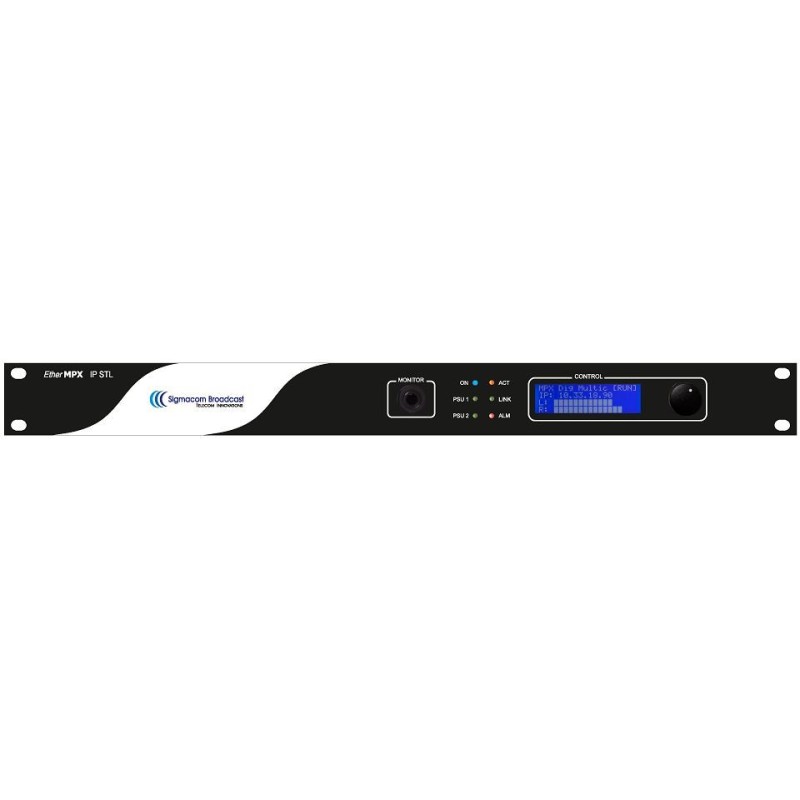

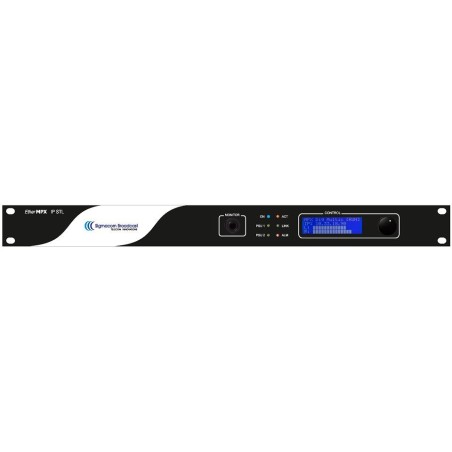

Sigmacom Encoder AOIP

SFNKey Facts \n• Transparent Analog or Digital MPX (MPX over AES), or two discrete L/R channels (analogue or AES). \n• Built-in MPX SFN support with PTP sync (up to 6.000km in basic version). No GPS receivers! \n• Unicast or Multicast operation to feed unlimited number of FM transmitters with MPX from one encoder. \n• Linear uncompressed PCM 24-bit audio. \n• Very low audio latency: 2,5mS in MPX mode. \n• Perfect match with DDS Exciter’s with Digital MPX input. \n• Can be used with high quality 802.11a/n Ethernet links. \n• DC coupled, balanced Analog inputs & outputs with -130dBc noise floor. \n• No modulation overshoots due compression or AC capacitor coupling. \n• Decoder provides simultaneously Analog & Digital output for transmitter redundancy. \n• Aux RS232 serial transparent link, Studio to Transmitter. \n• Auto switchover to Analog input when Digital signal is lost. \n• Centralized remote control & management software \n \n  \n \nA complex implementation example, transporting 2 radio programs to 3 different TX locations: \n \n
